High-Performance AVENTICS R412007269 3/2-Way Directional Control Valve for Precise Control of Compressed Air and Neutral Gases

Name: HighPerformance AVENTICS R412007269 32Way Directional Control Valve for Precise Control of Compressed Air and Neutral Gases
Brand: Aventics
Price: 10000 USD

Best High-Performance AVENTICS R412007269 3/2-Way Directional Control Valve for Precise Control of Compressed Air and Neutral Gases wholesale

Brand Name : Aventics

Model Number : R412007269

Certification : cc

Place of Origin : Denmark

MOQ : 1

Price : RMB10000-100000/PC

Payment Terms : T/T

Supply Ability : 10pc/days

Delivery Time : 3work days

Packaging Details : Wooden box packing

Protection : Short circuit, overcurrent, overvoltage

Color : White

Installation Type : Direct acting

Resolution : Up to 1200 dpi

Warranty : 1 year limited warranty

Power Supply : 5V DC

Contact Now

AVENTICS R412007269

The Aventics R412007269 is a high-performance 3/2-way directional control valve designed for precise control of compressed air and neutral gases in various industrial applications. This valve is part of the AS3-SOV series, known for its reliability and efficiency in pneumatic systems.
Technical SpecificationsType: 3/2-way Directional Control Valve.
Series: AS3-SOV.
Nominal Flow:
1 to 2: 4500 l/min.
2 to 3: 3200 l/min.
Operating Pressure Range: 2.5 to 10 bar.
Medium: Compressed air, neutral gases.
Medium Temperature Range: +14°F to +122°F.
Ambient Temperature Range: +14°F to +122°F.
Sealing Principle: Soft sealing.
Max. Particle Size: 25 µm.
Protection Class: IP65.
Electrical Connection: ISO 15217, form C.
Operating Voltage: 24 V DC.
Power Consumption: 2 W.
Weight: 0.459 kg.
Materials:
Housing: Polyamide.
Front Plate: Acrylonitrile Butadiene Styrene.
Seals: Acrylonitrile Butadiene Rubber.
Threaded Bushing: Die-cast zinc.
Features and BenefitsModular Design: Can be assembled into blocks for compact and efficient systems.
Robust Construction: Ensures durability in industrial environments.
High Efficiency: Provides high flow rates and low power consumption.
Versatile Applications: Suitable for a wide range of industrial applications requiring precise control of compressed air and neutral gases.
ATEX Optional: Available with ATEX certification for use in potentially explosive environments.

Brand	AVENTICS
Type	R412007269
Operating voltage	220V
Size	315
Shaft Diameter	5mm
Speed	2000 RPM
Weight	1.1kg
Power Source	Electric
Operating Temperature	-20°C to 80°C
Material	Steel
Current	1.5A

High-Performance AVENTICS R412007269 3/2-Way Directional Control Valve for Precise Control of Compressed Air and Neutral Gases

FAQ

Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.

Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.

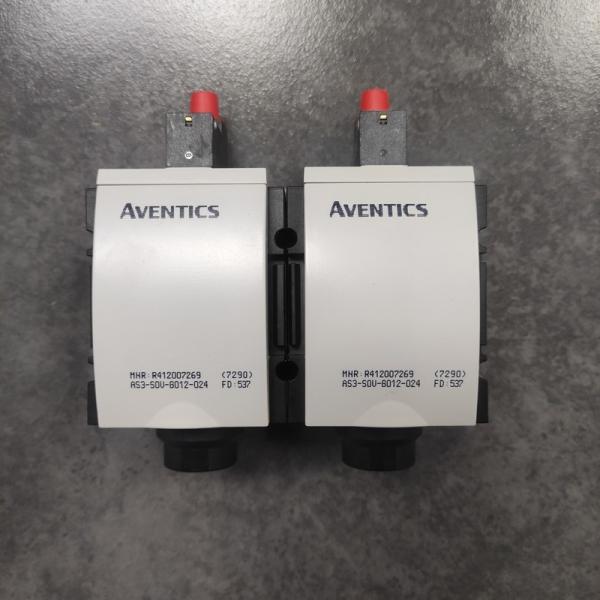

High-Performance AVENTICS R412007269 3/2-Way Directional Control Valve for Precise Control of Compressed Air and Neutral Gases Images
